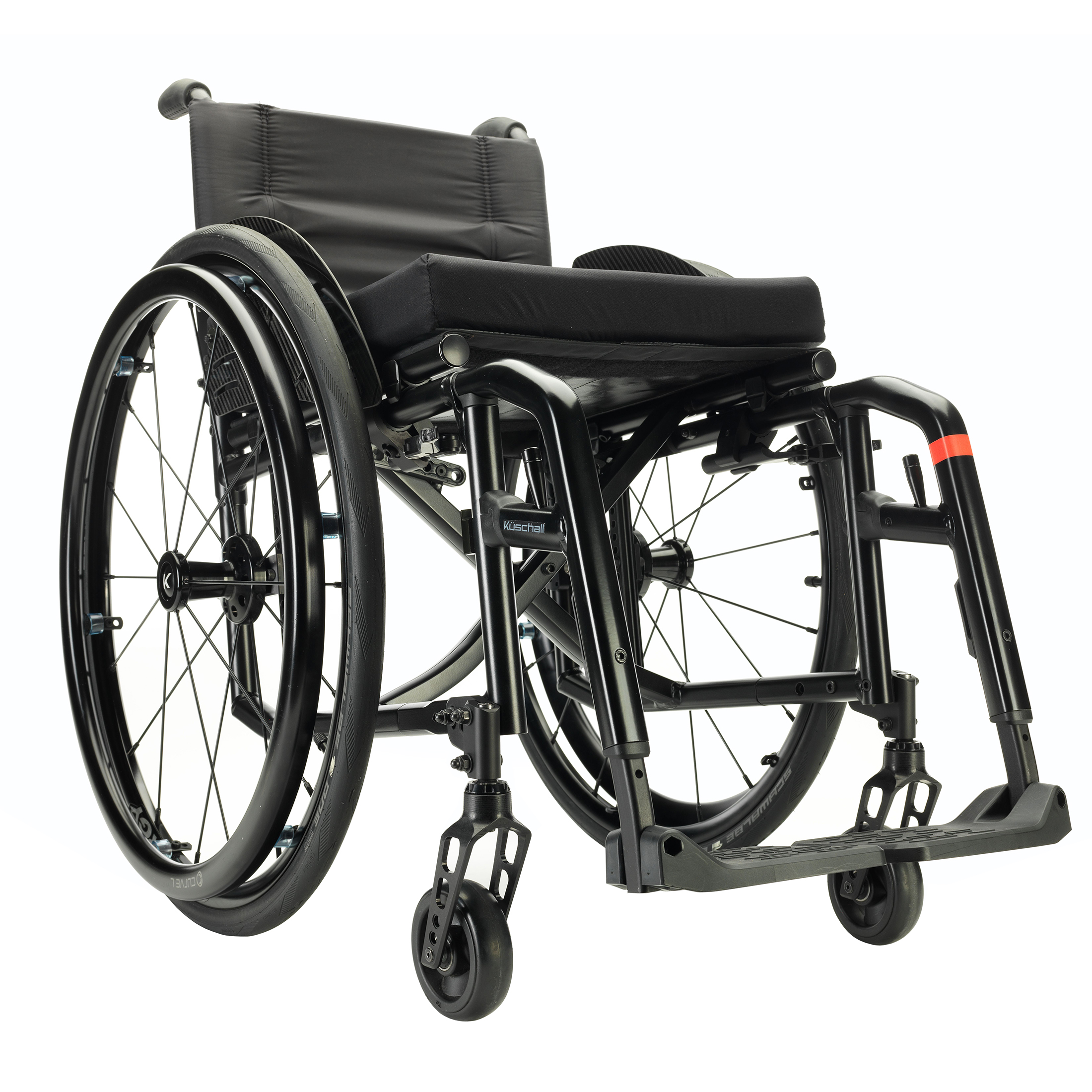

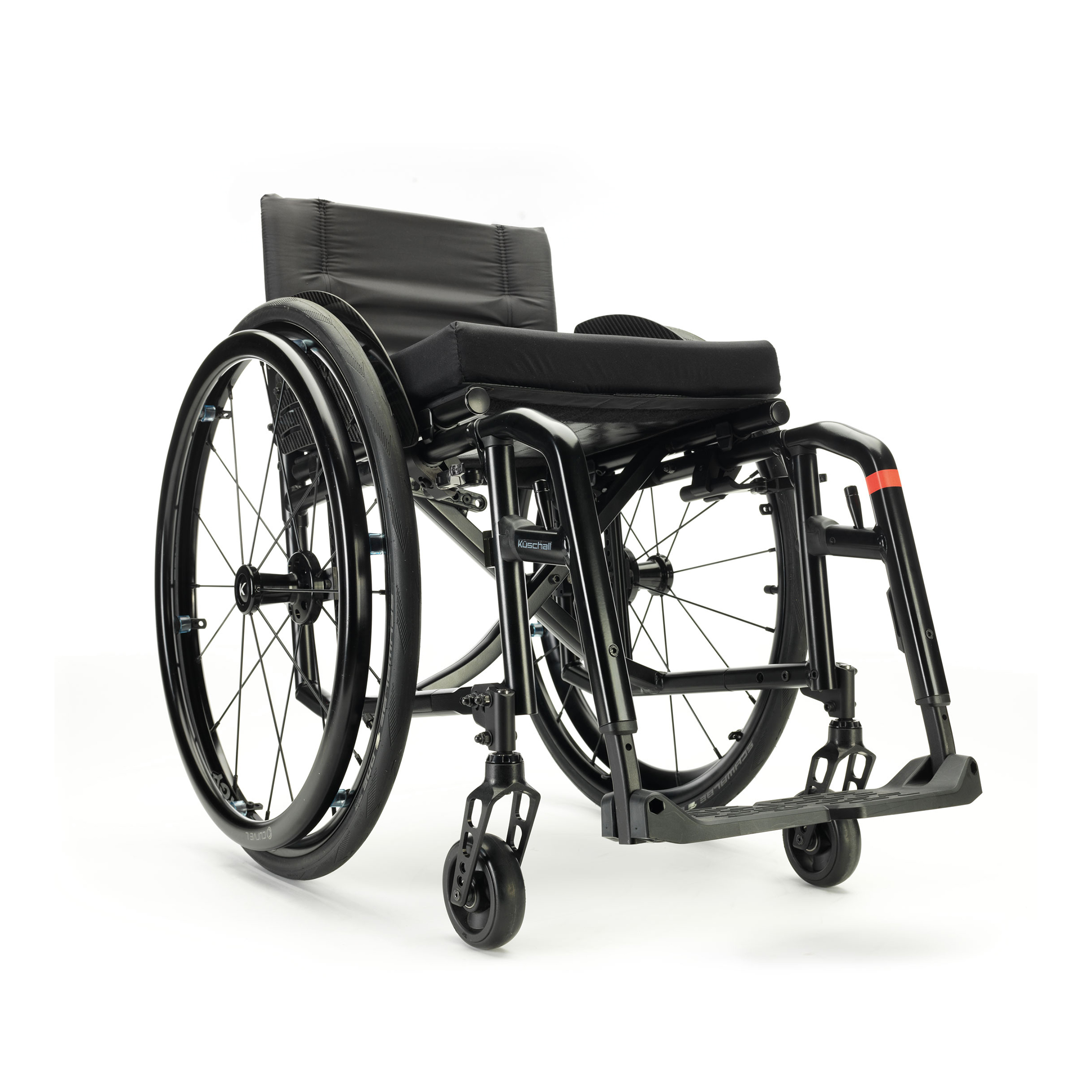

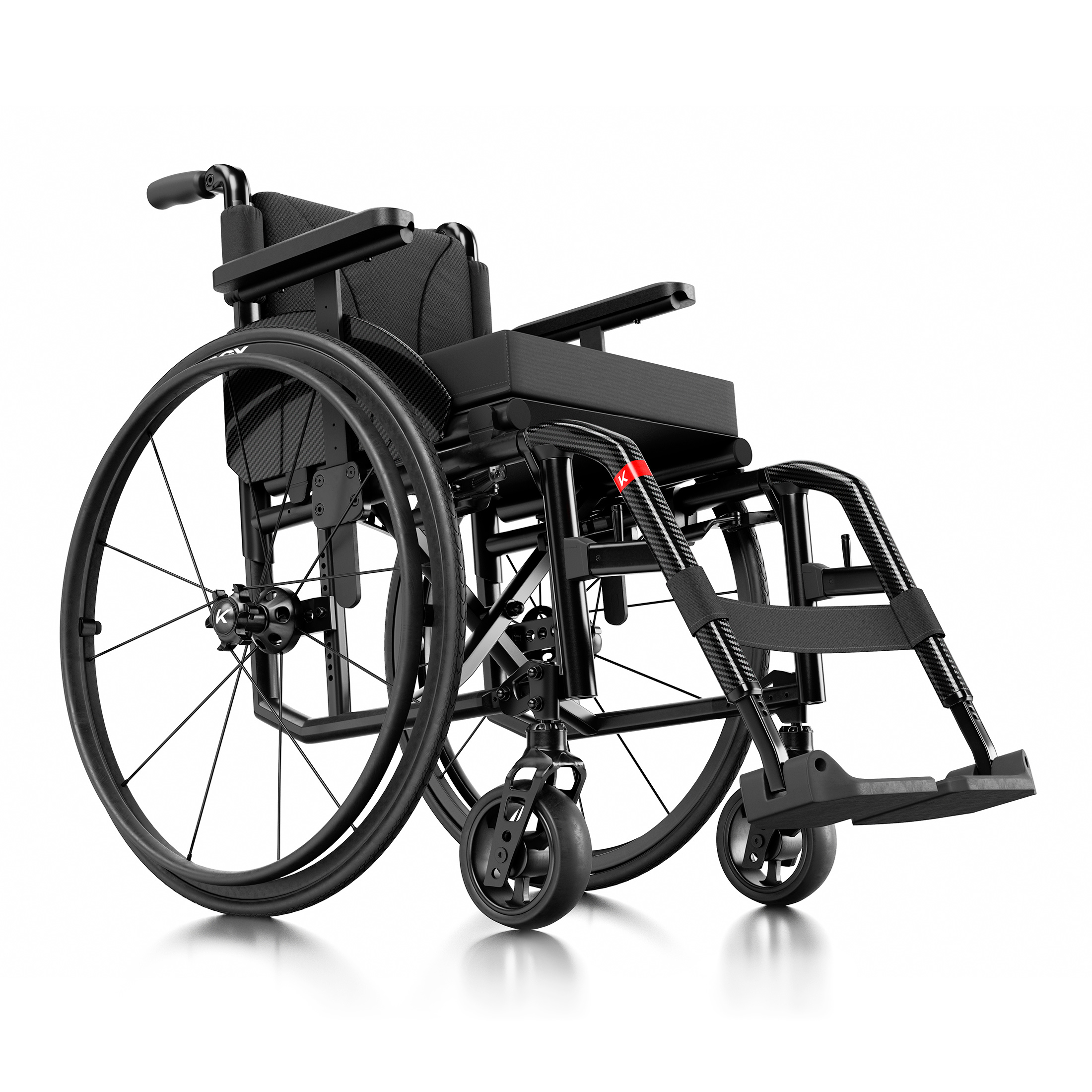

Küschall Compact 2.0 manual wheelchair

The Kuschall Compact 2.0 manual wheelchair is part of the newly redesigned, rebuilt and rebranded Kuschall range. Offering a new modern design and the latest in hydroformed technology this design-led model combines superior driving performance with revolutionary functionality.

The Invacare Kuschall Compact 2.0 is your go-to wheelchair for absolute reliability, high-class quality, and outstanding functionality. The Kuschall Compact can easily be adapted to suit your needs and lifestyle. Whether you need a higher level of configurability or an active product, Kuschall Compact is right for you! This traditional style, cross folding wheelchair can be effortlessly folded. The lightweight frame is robust, giving you a smooth driving performance.

Küschall compact 2.0 manual wheelchair
Küschall compact 2.0 Manual wheelchair
Küschall Compact 2.0 manual wheelchair side profile
Küschal Compact 2.0 Manual wheelchair front view
Küschall compact 2.0 manual wheelchair
Küschall compact 2.0 Manual wheelchair
Küschall Compact 2.0 manual wheelchair side profile
Küschal Compact 2.0 Manual wheelchair front view
Küschall compact 2.0 manual wheelchair
Küschall compact 2.0 Manual wheelchair
Küschall Compact 2.0 manual wheelchair side profile
Küschal Compact 2.0 Manual wheelchair front view

Kuschall Compact comes in the highest quality. It has an easily adjustable structure; it is lightweight and quite aesthetically pleasing. This manual wheelchair is more than just a means of transportation but an accessory to life. It is available with fixed or swing-away leg rests. Users can choose the fixed or swing-away front frame; the result is an all-around product with the stance of a super active wheelchair.

Hydroforming is also added to the Kuschall Compact. This allows a significant reduction of the weight of the frame, ensuring less effort in propelling, secure front transfers and a compact storage. The combination of design and built-in precision results in an ultra-light wheelchair that delivers optimal performance.


Key features include:


  • Ergonomic design: Ensures maximum grip for easy transfer, repositioning or loading in the car. Ergonomics meets today’s hydroforming possibilities, giving life to a design that unites tradition and modernity.
  • Keep On Track: Kuschall Compact comes with a Keep On Track feature – for regulations and excellent in keeping the direction steady. Never lose sight of the goal with Keep On Track.
  • Hydroforming: While versatility and comfort remain unaltered, the profile of hydroformed tubes offer more stiffness where necessary, along with a contemporary appeal to the overall look.
  • Adaptability: Kuschall Compact is designed to be adapted to your needs and lifestyle easily.
  • Foldable: Kuschall Compact is a traditional style cross folding wheelchair that can be folded easily.
  • Lightweight design: It has a robust and lightweight frame, thus providing smooth driving performance.


The Kuschall Compact 2.0 is a HSE tender awarded product.

    Two chairs, one platform
    Two chairs, one platform

    The wheelchair is available with swing away legrests, suitable for transport or transfers, or fixed front frame at 80 ° or 70 ° for greater rigidity.

    Front Frame
    Front Frame

    Complete redesign of the front frame and foot hangers. Ingenious design and skillful application of the hydroforming made possible to obtain a weight reduction up to 500 gr.

    Footplate
    Footplate

    The new footplates range fits all seat widths and adds a modern design to its one-piece footplate with the anti-slip surface.

    Folding System
    Folding System

    Folding Easy "one-finger" locking system and longitudinal locking mechanism to house the seat tubes safely in the unfolding phase.

    Cross Brace
    Cross Brace

    Designed specifically for users with reduced strength and to support a higher weight without adding material to the frame tubes.

    Customisation
    Customisation

    Unparalleled concept, achieved through the combination of modern frame painting with elegant decals in different shapes and colors. The result is an aesthetically unique wheelchair.

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    3D Visualiser
    Configure your new Küschall to the last detail
    Watch your new Küschall wheelchair take shape, configure it the smallest details and have fun, the power is in your hands.
    Specifications & Downloads
    Sales Literature (1)
    Sales Literature (1 archive)
    Technical data
    Technical data
    Seat width

    Seat width

    280 – 500 mm in increments of 20 mm

    Seat depth

    Seat depth

    320 – 500 mm in increments of 20 mm

    Seat height

    Seat height

    front: 380 – 530 mm; rear: 360 – 500 mm in increments of 10 mm

    Knee-to-heel length

    Knee-to-heel length

    200 – 510 mm in increments of 10 mm

    Camber

    Camber

    0° / 3°

    Backrest angle

    Backrest angle

    82° / 86° / 90° / 94° /  98° / 102 °

    Backrest height

    Backrest height

    300 – 510 mm in increments of 15 mm

    Front frame angle

    Front frame angle

    70° / 80° straight or tapered

    Total width

    Total width

    SW + 180 mm

    Total width folded

    Total width folded

    approx. 290 mm

    Total length

    Total length

    70°:approx. 870 – 1220 mm; 80°: approx. 850 – 1200 mm

    Max. safe slope

    Max. safe slope

    Max. User weight

    Max. User weight

    130 kg

    Total weight

    Total weight

    approx. 9.6 kg

    Transport weight

    Transport weight

    approx. 6.7 kg

    Frame colour

    Frame colour

    Space Black, Anthracite Grey, Pure White, Carmine Red, Azure blue, Black Gossy, Ferrite, Slate Metallic, Silver Grey, Royal Blue, Ruby Red, Smoky Grey, Dynamite Orange, Forest Green

    Colour (other)

    Colour (other)

    Light Grey, Gold, Red, Blue, Dark Grey, Black
