e-pilot wheelchair power pack

Go further with the Alber e-pilot.

The e-pilot electric power assist drive unit by Alber is specially designed to provide an environmentally friendly mobility alternative with maximum driving pleasure. This device transforms your manual wheelchair into a sporty vehicle in a few seconds. There are just a few simple steps to attach the e-pilot to your wheelchair, and you have a dynamic combination for everyday life.

e-pilot  wheelchair power pack
e-pilot  wheelchair power pack
e-pilot P15 wheelchair power pack
e-pilot P15 wheelchair power pack
e-pilot  wheelchair power pack
e-pilot  wheelchair power pack
e-pilot P15 wheelchair power pack
e-pilot P15 wheelchair power pack
e-pilot  wheelchair power pack
e-pilot  wheelchair power pack
e-pilot P15 wheelchair power pack
e-pilot P15 wheelchair power pack

The Alber e-pilot offers maximum flexibility. Users can take a quick trip into town, visit friends or go out with the dog, thanks to the e-pilot. Users can undock the e-pilot to use the manual wheelchair after reaching their destination.

The e-pilot offer users an effortless and comfortable drive experience. The large front wheel allows users to expand their options: a dust road or cobblestones are no longer obstacles. The sturdy chassis, integrated battery pack and powerful drive wheel combine to make a sporty design with sophisticated ergonomics perfectly. The large front wheel allows you master bumps and obstacles like curbs with ease. It also has an optional mobility plus package that will get you to your destination faster, ensuring a real driving fun.

Key features include:

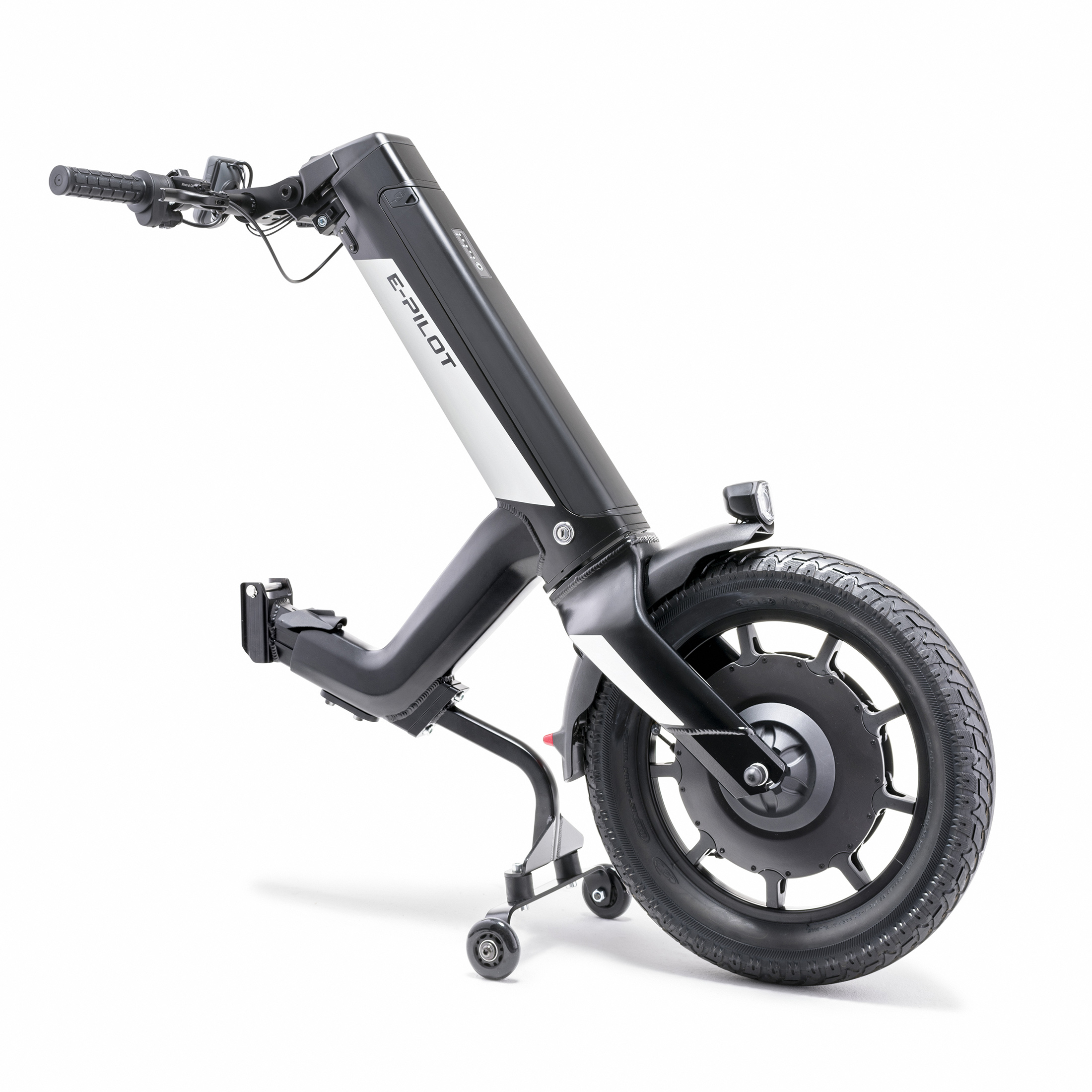

  • Drive unit: The unit comes with an innovative and elegant hydroforming aluminum frame, integrated battery holder with lock, cables, and wires in the frame, brake lever left and right, hydraulic, stand with patented swiveling function for easily overcoming of obstacles.
  • Automatic battery-charger: It has an electronic charging and switch-off mechanism, charging time of an empty battery approximately 4 hours.
  • Display:  Easy to remove and attach by twist-lock, TFT full colour display with indicator for speed, battery capacity, driving mode and tour data, language selection, traction assist and system information via menu.
  • Colour options: It is available in a wide range of colours.
  • Throttle handrest: This offers a fatigue-free operation of the throttle, easy mounting via clamping bracket, easy to retrofit.
  • Supernova front light: It has a double light output compared to standard lighting, robust design aluminum housing, extra bright with 205 lumens.
Drive Unit
Drive Unit

Innovative and elegant hydroforming aluminum frame, integrated battery holder with lock, cables and wires in the frame, brake lever left and right, hydraulic, stand with patented swiveling function

Battery Pack
Battery Pack

Auto contacting, quick-release battery pack, range up to 50 km (depending on the ground surface, the weight of the user, temperature, wheelchair settings and terrain), weight: only 2.9 kg battery.<

Automatic Battery- Charger
Automatic Battery- Charger

Electronic charging and switch-off mechanism, charging time of an empty battery approx. 4 hours.

Display
Display

Easy to remove and attach by twist-lock, full colour display with indicator for speed, battery capacity, driving mode and tour data, language selection, traction assist and system information.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Technical data
Technical data
Available wheel sizes

Available wheel sizes

16 x 3.00

Weight per wheel

Weight per wheel

15.5 kg

Speed

Speed

0.5 – 20 km/h

Driving range

Driving range

50 km

Motor capacity

Motor capacity

250 W

Max. climbable obstacle height

Max. climbable obstacle height

0,1

Battery capacity

Battery capacity

36 V / 13.8 Ah

Battery type

Battery type

Lithium-Ion

Battery weight

Battery weight

3.4 kg

Total weight

Total weight

18.4 kg

Max. User weight

Max. User weight

100 kg

Pricelist (1)
Pricelist (1 archive)
Test & Certificates (1)
