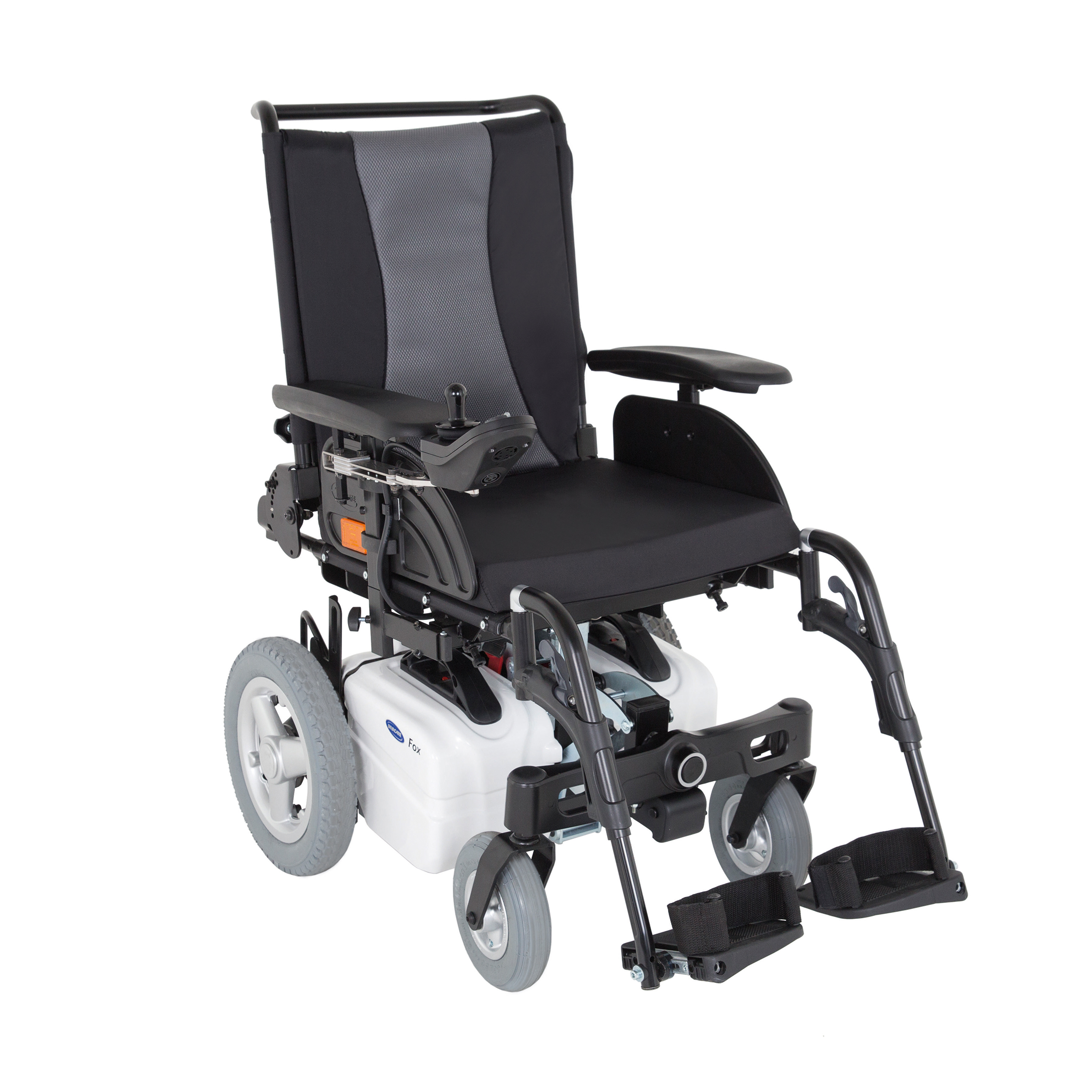

Invacare Fox power wheelchair

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (2)
Technical data
Technical data
Seat width

Seat width

Std - 350 , 400, 450, 500 mm Modulite - 330 - 530 mm

Seat depth

Seat depth

Std - 400, 430, 460, 490 mm Modulite - 410 - 510 mm

Seat height

Seat height

480 / 510 mm

Backrest height

Backrest height

Std - 490 / 570 mm Modulite - 480, 540 mm

Armrest height

Armrest height

230 - 280 mm 205 - 255 mm

Length of footrests

Length of footrests

350 - 450 mm

Seat angle

Seat angle

0, 2, 4, 6, 8°

Backrest angle

Backrest angle

85, 95, 105, 115°

Total height

Total height

1010-1120 mm

Driving unit width

Driving unit width

590 mm

Total length

Total length

1015 / 1045 mm

Max. User weight

Max. User weight

127 kg

Battery capacity

Battery capacity

Std - ca. 34, 40, 50 Ah Modulite 40Ah

Turning diameter

Turning diameter

1600 / 1630 mm

Max. climbable obstacle height

Max. climbable obstacle height

60, 100 mm

Max. safe slope

Max. safe slope

10.5% / 6°

Motor capacity

Motor capacity

2 x 200 W

Speed

Speed

Std - 3, 6, 8 km/h Modulite - 6km/h

Driving range

Driving range

up to 40 km

Total weight

Total weight

ca. 79 kg

Crash tested

Crash tested

Shroud colour

Shroud colour

Silky Matt Black, Pearl Night Blue, Metallic Silver, Transparent Cherry Red, White

Shroud colour

Comment

Total width, folded: 540 x 590 x 540 mm 1. With inrigged armrest 2. By armrest adjustment 3. Without seat cushion at 4° tilt 6. With kerb climber 7. According to ISO 7176-4:40 km – 45/50 Ah (3 / 6 km/h) 32 km – 40 Ah (3 / 6 km/h) 27 km – 34 Ah (3 / 6 km/h) 32 km – 45/50 Ah (8 km/h) 27 km – 40 Ah (8 km/h) (450 / 480 mm at 0° tilt) 4. Wheelbase 5. Depending on configuration
