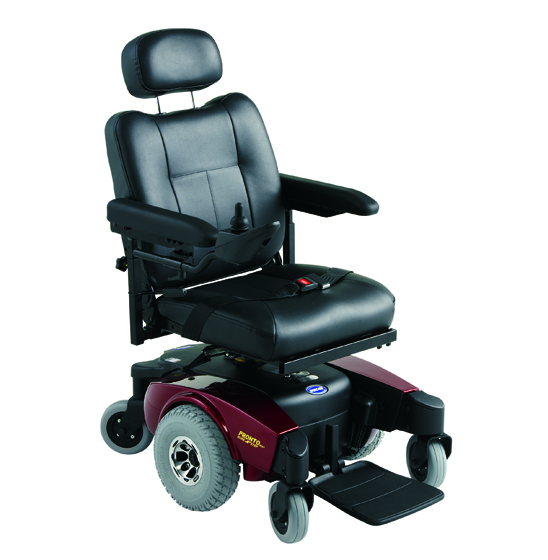

Invacare Pronto M61 Power Wheelchair

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

455 - 500 mm

Seat depth

Seat depth

410 - 460 mm

Seat height

Seat height

470 -600 mm 500 - 630 mm

Backrest angle

Backrest angle

87 - 123°

Total height

Total height

1020 mm

Driving unit width

Driving unit width

630 mm (excluding joystick)

Total length

Total length

790 mm 1050 mm

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

2 x 32 Ah

Turning diameter

Turning diameter

1000 mm

Max. climbable obstacle height

Max. climbable obstacle height

50 mm

Max. safe slope

Max. safe slope

7° / 12%

Motor capacity

Motor capacity

2 x 180 W

Speed

Speed

6 km/h

Driving range

Driving range

up to 19 km

Total weight

Total weight

91 kg

User Manual (1)
User Manual (1 archive)
Service Manual (1)
Service Manual (1 archive)
Spare Parts (1)
Spare Parts (1 archive)
