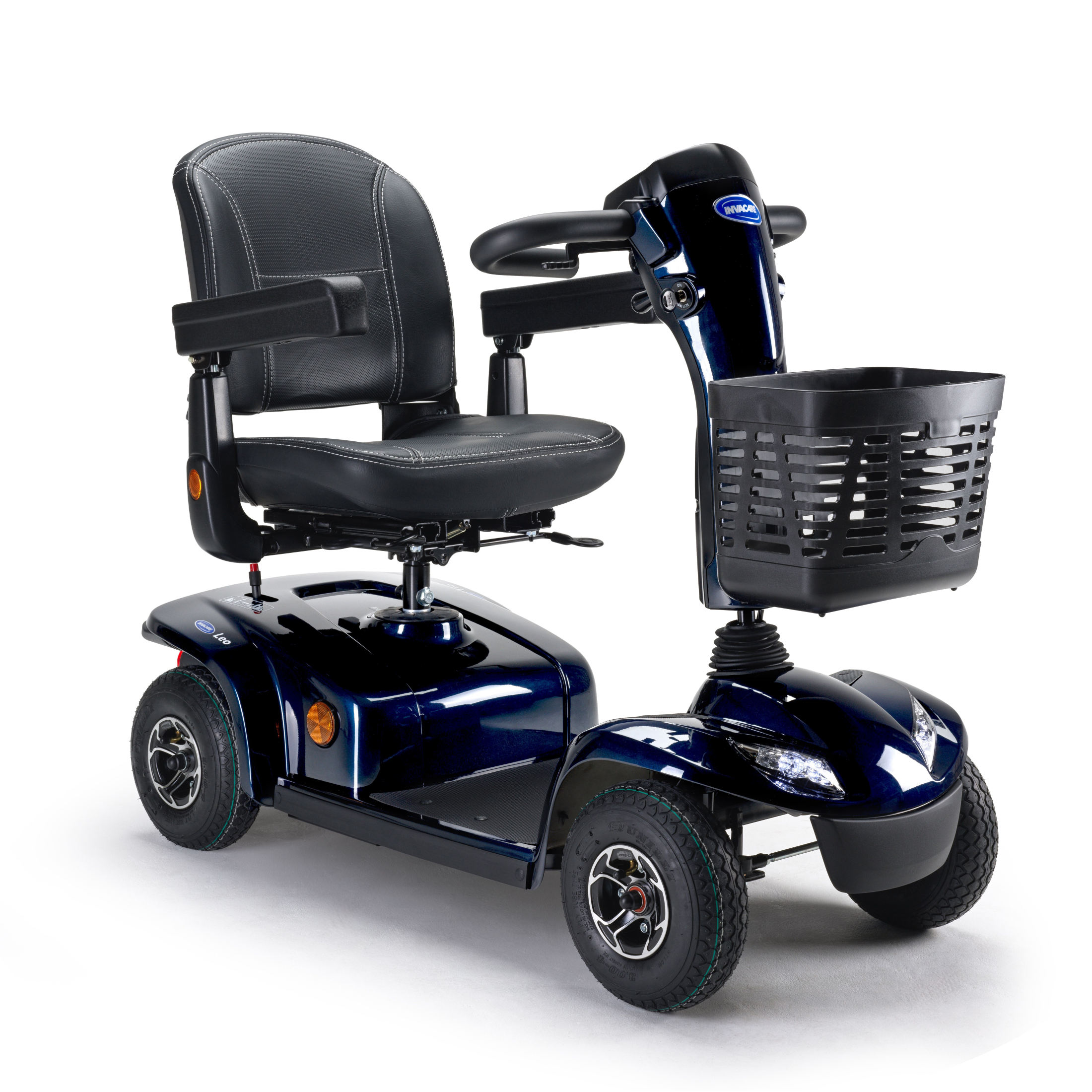

Invacare Leo mobility scooter

The Invacare Leo is a safe and secure mobility scooter, specially designed for individuals with great desire for independence and wish to get out and about single-handedly. It offers a smooth safe drive that is easy to control which makes it an ideal scooter for those who are independent. The Leo scooter is available in 3- and 4-wheel options and with high standards of design and safety, the Leo’s aesthetic is still very stylish and sporty. A perfect scooter to enjoy a trip to the shops.


For a safe, powerful drive, the Invacare Leo offers a smooth, safe ride in a scooter that is easy to control and manoeuvre. The Leo's intelligent lighting package comprises of indicators that automatically switch off and a rear brake light for safe driving. In addition to a visual warning for the battery level display, there is an audible warning (beep) when the battery needs recharging.


The Invacare Leo is a compact mini-scooter that can be easily dismantled for transportation during longer trips or weekend breaks. Easy manoeuvrability for getting around corners in the local shopping centre, museum, or leisure complex becomes refreshingly easy. Access to the battery and electronics for maintenance or servicing is much more comfortable with the Leo as only one part needs to be removed.


Key features include:


  • Finite tiller movement: Users can easily adjust the tiller to suit their needs.
  • A compact mobility scooter ideal for travel
  • Brake light: It comes with rear brake lighting – it warns other people that the scooter is slowing down to preventing collisions.
  • Comfort seating:  Swivel functionality and sliding rails ensure optimal seating position.
  • Two-step disengaging lever: This feature helps to prevent the scooter from accidentally freewheeling.
  • Built-in anti-splash guards: This protects electronics and the transaxle from dirt and water.
  • Charging off-board: Batteries can be simply removed to charge with the off-board charger kit.
  • A range of accessories are available
  • Max user weight: 136kg


The Invacare Leo mobility scooter is a HSE tender awarded product




    Finite Tiller Movement
    Finite Tiller Movement

    Individual can easily adjust the tiller to suit their needs.

    Comfort Seating
    Comfort Seating

    Swivel functionality and sliding rails ensure optimal seating position.

    Two-step Disengaging Lever
    Two-step Disengaging Lever

    This unique concept prevents the scooter from accidentally freewheeling.

    Built in Anti-splash Guards
    Built in Anti-splash Guards

    This feature protects electronics and the transaxle from dirt and water.

    Disassembles into five parts
    Disassembles into five parts

    No tools are required to dismantle the Invacare Leo Mobility Scooter

    Request a quote

    Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

    Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
    Specifications & Downloads
    Sales Literature (1)
    Sales Literature (1 archive)
    Technical data
    Technical data
    Backrest width

    Backrest width

    470 mm

    Seat depth

    Seat depth

    410 mm

    Seat to floor height

    Seat to floor height

    460 - 560 mm

    Backrest height

    Backrest height

    475 mm

    Driving unit width

    Driving unit width

    590 mm

    Total length

    Total length

    1220 mm

    Max. User weight

    Max. User weight

    136 kg

    Battery capacity

    Battery capacity

    2 x 36 Ah

    Turning diameter

    Turning diameter

    3 wheel 2320 mm / 4 wheel 2620 mm

    Max. climbable obstacle height

    Max. climbable obstacle height

    60 mm

    Ground clearance

    Ground clearance

    70 mm

    Max. safe slope

    Max. safe slope

    10°

    Motor capacity

    Motor capacity

    240 W

    Speed

    Speed

    8 km/h

    Driving range

    Driving range

    38 km

    Total weight

    Total weight

    3 wheel 54 kg (excl. batteries) 78 kg (incl. batteries) 4 wheel 59 kg (excl. batteries) 83 kg (incl. batteries)

    Shroud colour

    Shroud colour

    Moonstone Silver, Onyx Blue, Ruby red

    Upholstery

    Upholstery

    Black Vinyl

    Upholstery

    Comment

    1. Seat in maximum fifth rearward locking position from the front.
