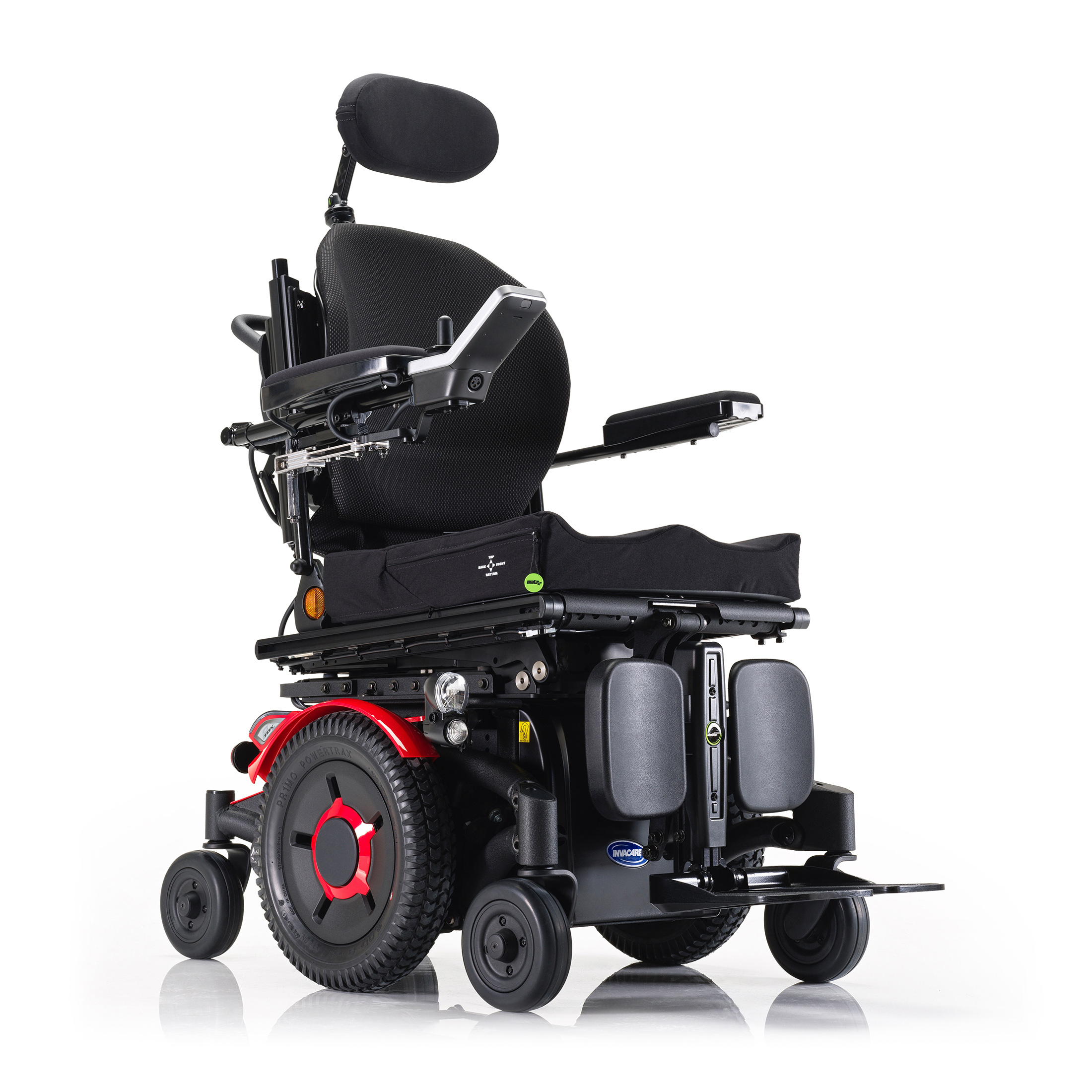

Invacare TDX SP2 Ultra low maxx Power Wheelchair

TDX SP2 Ultra Low Maxx is made with the best quality materials that guarantee durability and meet various users need. The Invacare TDX SP2 is a high performance, centre wheel drive power wheelchair, equipped with the advanced Ultra Low Maxx seating system and revolutionary LiNX smart technology. It is specially designed to be the new benchmark in the complex rehab arena. If you’re looking for a powerchair that is a perfect mix of functionality, customisation and style TDX SP2 Ultra Low Maxx is your best bet.

It is equipped with great features that make it quite functional – the stability enhancement offers maximum stability and safety. The Stability Lock function ensures all six wheels stay firmly on the ground on uneven terrain. It has a patented SureStep suspension technology that enables a smooth ride. The larger batteries provide more driving range.

Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair
Invacare TDX SP2 Ultra low maxx wheelchair

The TDX SP2 Ultra Low Maxx by Invacare features a LiNX Smart Technology, which plays a vital role in mobility. It provides a superb driving experience for users and allows professionals to configure and tailor powerchairs quickly and more intuitively. The smart control system enables programming and maintenance updates to be made wirelessly and in real-time. More so, it has direct access to statistical and diagnostic information. This gives complete visibility to professionals. Below are some key features:

  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen.

  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.

  • Compact remote with LED display: This is ideal for users who have a limited range of motion and reduced strength.

  • Extremity control joystick: Ideal for chin control with the outer shell being resistant to saliva.

  • MEC joystick: This is perfect for those with muscle weakness or fine motor control.

  • LiNX Smart Technology: This an advanced technology that ensures an exciting driving experience.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

405 - 610 mm

Seat depth

Seat depth

405 - 580 mm

Seat height

Seat height

440, 460 and 490 mm 1

Seat to floor height

Seat to floor height

440, 460 and 490 mm 1

Backrest height

Backrest height

355 - 505 mm 2

Armrest height

Armrest height

230 - 405 mm 3

Length of footrests

Length of footrests

270 - 474 mm 4

Seat angle

Seat angle

0° to 50° 5

Backrest angle

Backrest angle

60° - 170°

Total height

Total height

1080 - 1535 mm

Total length without footrests

Total length without footrests

920 mm

Driving unit width

Driving unit width

650 mm

Total length

Total length

1120 mm

Max. User weight

Max. User weight

136kg

Battery capacity

Battery capacity

73.5 Ah

Turning diameter

Turning diameter

1120 mm

Max. climbable obstacle height

Max. climbable obstacle height

75 mm

Max. safe slope

Max. safe slope

9° / 16°

Motor capacity

Motor capacity

2 x 324 W 2 x 340 W 11

Speed

Speed

6, 8, 10 or 12 km/h

Driving range

Driving range

up to 31 km

Total weight

Total weight

156 kg 169 kg 179 kg

Crash tested

Crash tested

Rim colour

Rim colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Shroud colour

Island Blue, Lights Out Matte - Black, RockStar Red, SpaceStation Silver,  Invacare Blue, Wet Black, Grape JellyBean

Shroud colour

Comment

1. With a standard tilt 2. Depending on back support choice 3. Depending on armrest choice 4. Depending on legrest choice 5. 0°-45° for versions with lifter -5° and -10° anterior mounting options +5° pre tilt mounting option 6. Depending on legrest choice and seat position 7. Measured according to ISO 7176-4:2008 with 6 km/h and 73.5 Ah batteries; driving range will vary by configuration (battery size, speed). 8. TDX SP2 NB with tilt module 9. TDX SP2 with lifter/tilt module 10. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family. 11. 12 km/h DuraWatt motors
