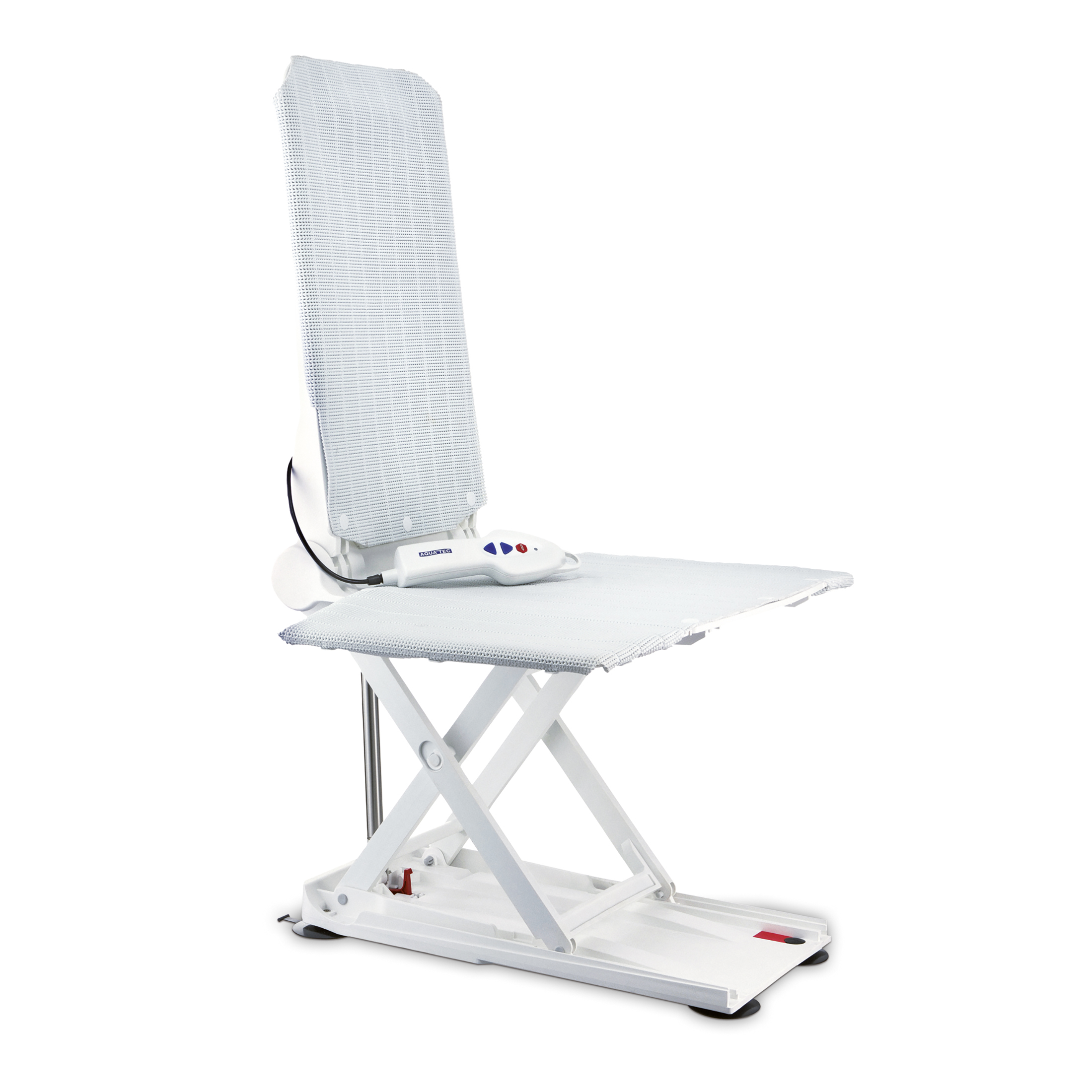

Aquatec Orca NG Bath Lifter

The Aquatec Orca bath lifter is designed to support the individual when getting in and out of the bath . It features an Impressive weight limit of 140 kg, increased leg room for deeper and more relaxed bathing, among other functions. The Aquatec Orca NG offers superior quality and a durable bath lifter that are designed to offer comfort, safety and reassurance to those most in need of support as they bath. The Orca NG also includes an ergonomic floating hand control that contains a highly efficient lightweight battery.


Elévateur de Bain Invacare Aquatec Orca
Elévateur de Bain Invacare Aquatec Orca
Elévateur de Bain Invacare Aquatec Orca
Elévateur de Bain Invacare Aquatec Orca
Elévateur de Bain Invacare Aquatec Orca
Elévateur de Bain Invacare Aquatec Orca

Aquatec Orca NG also features a textured seating surface that allows use without covers if desired. The side flaps are hinged flush to the main seating surface and enable comfortable and safe side transfers, without trapping the skin. The backrest and base section can then be removed from the bath with ease. The two sections fit neatly into one another to give an extremely compact size for storage.


Overall, the Invacare Aquatec Orca NG is comfortable, safe and highly efficient. The Aquatec Orca range has been designed with the user in mind, giving a convenient and straightforward bathing experience. The reinforced scissor mechanism on the Orca range combines safe lifting with a compact construction while the minimum seat height of just 60 mm allows ample room for a deeper and more comfortable bath.


Key features include:

• Easy to clean: The open, clean-cut design of the Orca combined with its smooth surfaces to offer effortless cleaning.

• Reclining special backrest: Individually adjustable side parts for secure positioning.

• Height-adjustable headrest: For the safe support of the head and neck area. Recommended in conjunction with the special backrest

• Custom-built side flaps: This feature facilitates transfer from the lift.

• Safety belts: Aquatec Orca comes with a safety belt to hold the user securely.

• Side flap deflectors: To be used for hand grips in the bathtub. The side flap deflector can also be shortened when required.

• Weight limit: 140kg (22 stone)

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Article no. / Item code

Article no. / Item code

Orca 1573866 white / 1573876 blue /Orca F 1573682 / Orca XL 1573686

Seat width

Seat width

375 mm (without side flaps) 715 mm (with side flaps)

Seat depth

Seat depth

590 mm

Seat height

Seat height

420 mm (max,) - 60 mm (min.)

Width of backrest

Width of backrest

360 mm

Height of backrest

Height of backrest

665 mm

Base area

Base area

580 x 295 mm

Backrest can be reclined by up to

Backrest can be reclined by up to

40°

Total depth

Total depth

Orca & XL 650 mm (backrest upright) - 920 mm (backrest reclined) / Orca F 690 mm (backrest upright)

Total height

Total height

1075 mm

Total height with backrest

Total height with backrest

1075 mm

Max. User weight

Max. User weight

140 kg

Weight

Weight

10,8 kg (without hand control)

Cover thickness

Cover thickness

3 mm

Colour (other)

Colour (other)

White

Colour (other)

Comment

4.2 kg (Backrest weight) - 0.4 kg (Hand control weight)
