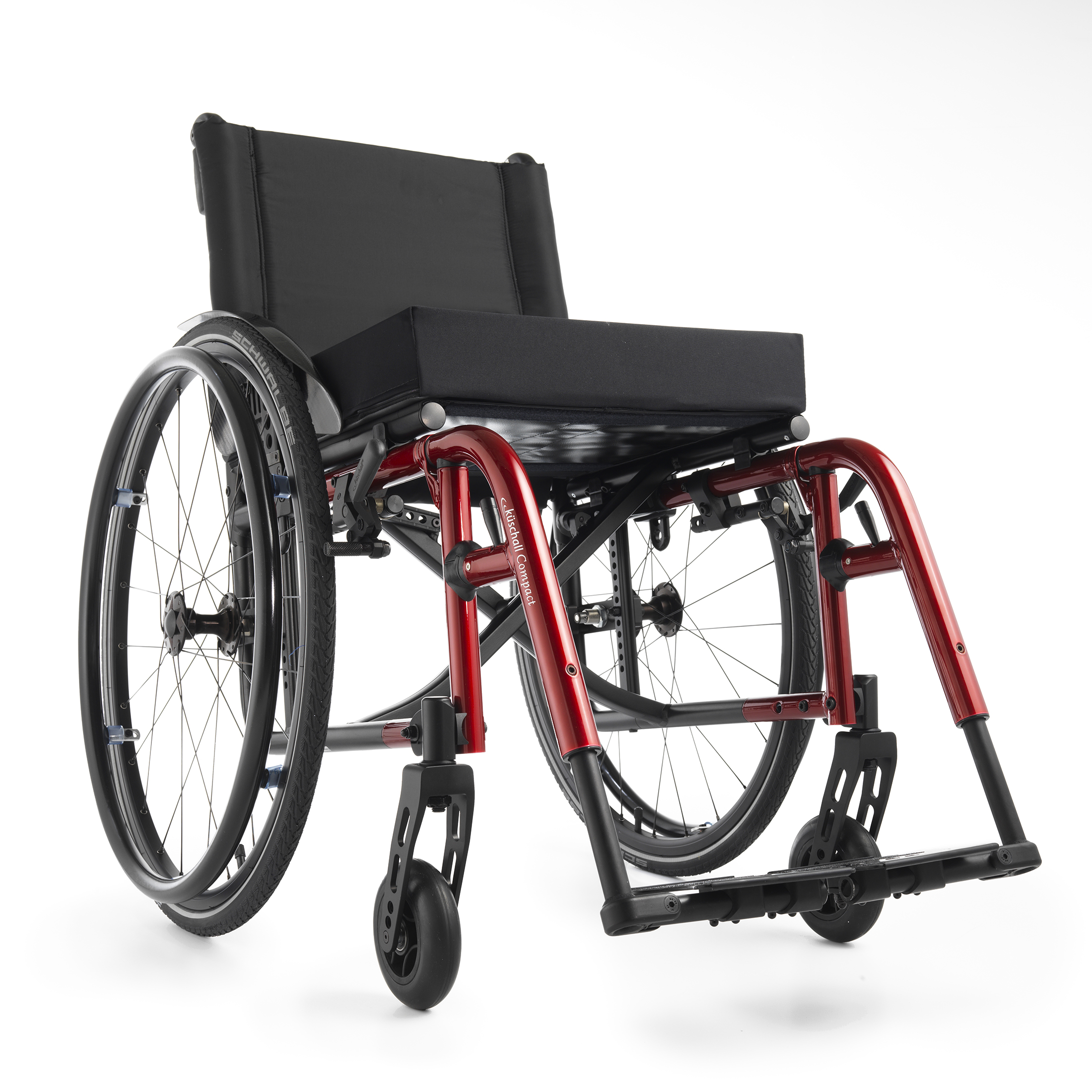

Küschall Compact Lightweight Wheelchair

Kuschall Compact active manual wheelchair
Küschall Compact Active Manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Kuschall Compact active manual wheelchair
Product Comparator
Compare
Cancel Compare
Sales contact Show your sales contact

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Find your Sales Contact
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Invacare Kuschall Compact (1.77 MB)
Technical data
Technical data
Seat width

Seat width

280 – 500 mm in increments of 20 mm

Seat depth

Seat depth

320 – 500 mm in increments of 20 mm

Seat height

Seat height

front: 410 – 530 mm; rear: 380 – 500 mm in increments of 10 mm

Knee-to-heel length

Knee-to-heel length

210 – 510 mm in increments of 10 mm

Camber

Camber

0° / 3°

Backrest angle

Backrest angle

82° / 86° / 90° / 94° /  98° / 102 °

Backrest height

Backrest height

300 – 510 mm in increments of 15 mm

Front frame angle

Front frame angle

70° / 80° / 90°

Reversing width

Reversing width

920 – 1230 mm

Total width

Total width

SW + 180 mm

Total width folded

Total width folded

approx. 290 mm

Total length

Total length

70°: approx. 940 mm; 80°: approx. 890 mm; 90°: approx. 840 mm

Max. safe slope

Max. safe slope

7°

Max. User weight

Max. User weight

130 kg

Total weight

Total weight

approx. 11 kg

Transport weight

Transport weight

approx. 8.3 kg

Frame colour

Frame colour

Smokey Grey, Ivory White, Nitro Pink, Black Mat, Night Shimmer, Mercury Blue, Flashy Yellow, Dynamite Orange, Atomic Violet, Glossy Black, Umber Glaze, Royal Blue, Silver Grey, Royal Red

Colour (other)

Colour (other)

B-Blue, Arctic blue, Olive, Techno-anthracite, Chrome, Champagne, Copper glaze, Comet red

Pricelist (1)
Pricelist (1 archive)
Kuschall Compact Price List (755.94 KB)
User Manual (1)
User Manual (1 archive)
Invacare Kuschall Compact -User Manual (3.41 MB)
Service Manual (1)
Service Manual (1 archive)
Invacare Kuschall Compact -Service Manual (6.89 MB)
Test & Certificates (3)
Test & Certificates (3 archives)
Invacare Kuschall Compac -Compact Certificate (332.58 KB)
Invacare Kuschall Compact (769.96 KB)
Invacare Kuschall Compact Crash Test Certificate (160.16 KB)
Spare Parts (1)
Spare Parts (1 archive)
Invacare Kushcall Compact (4.94 MB)
Miscellaneous (1)
Miscellaneous (1 archive)
Invacare Kuschall Compact (868.25 KB)
