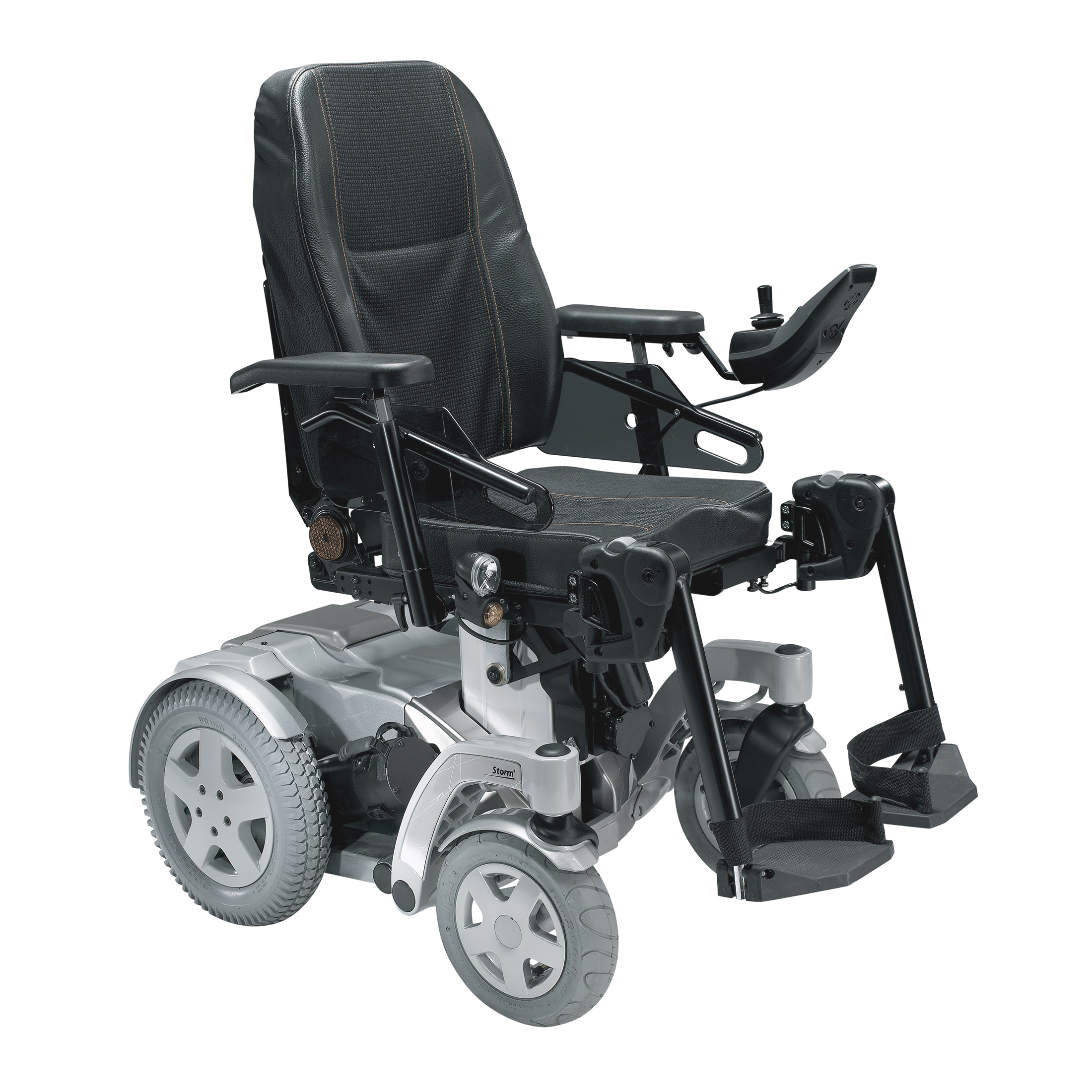

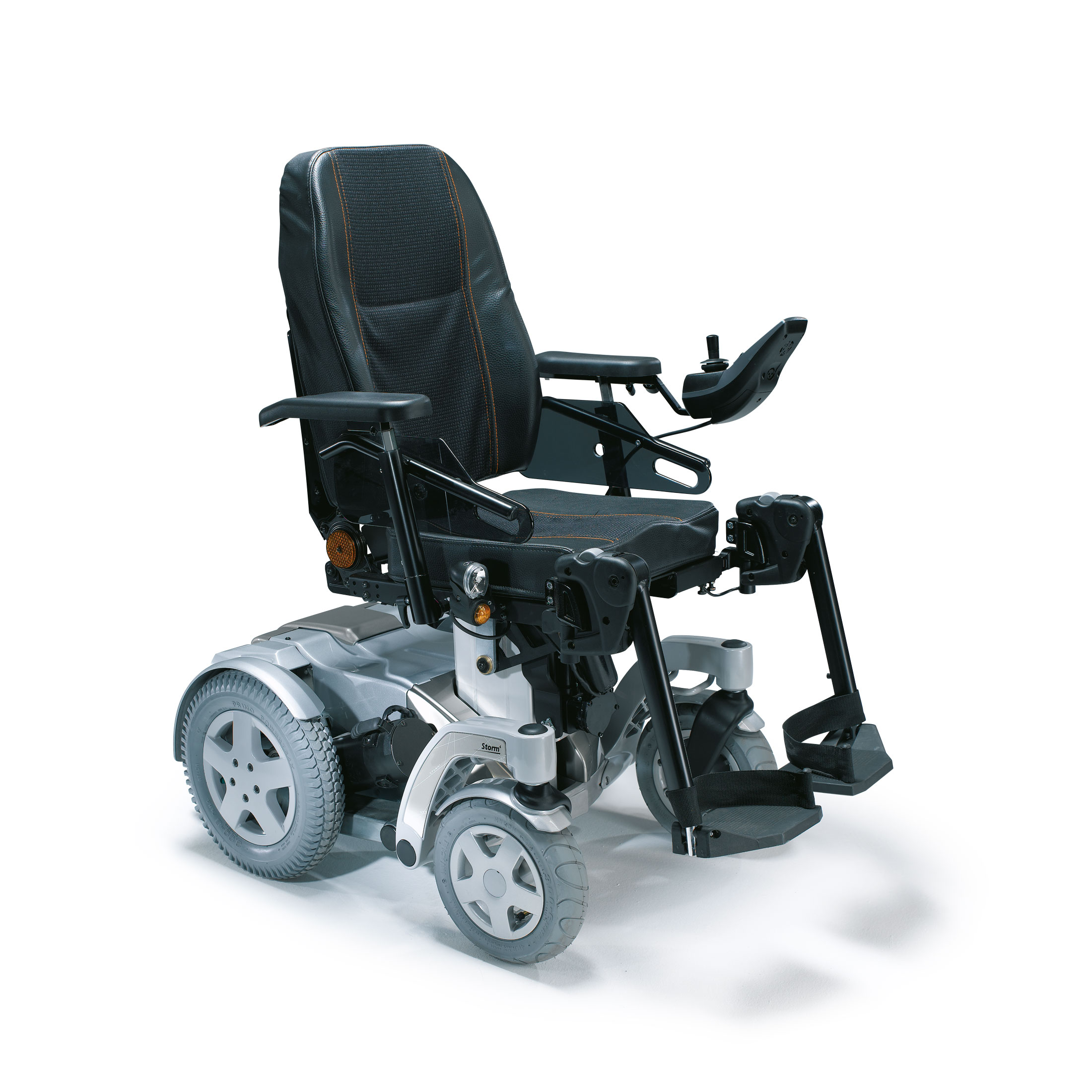

The Invacare Storm 4 power wheelchair is designed to offer configurability, adaptability and functionality. With its stylish look this motorized wheelchair offers a smooth drive that’s easy to maintain. The Storm 4 can be used as an outdoor wheelchair or indoor wheelchair providing a safe and stable drive experience without compromising on manoeuvrability.


Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair
Invacare Storm 4 Power Wheelchair

With its modular design concept the Storm4 is highly configurable. The motor type and speed can be adjusted to the wheelchairs user’s requirements for either indoor or outdoor use. It also features a wide range of backrest styles are available on the Modulite seating system to ensure a good posture for the user. Also, this power wheelchair is available in many different sizes with seat and back rest widths ranging from 380 to 530 mm.


The Invacare Storm4 is also very easy to handle – carefully built with the need for ease of handling in mind. The batteries are easy to remove, and the electronics are also accessible for fast, trouble-free servicing. This power wheelchair also comes with exceptional aesthetics. The contemporary design of the Storm4 indicates its robust construction and excellent driving performance. It has a modern LED lights, and the front arms are coloured with attractive side applications to compliment the chosen cover colour.


Key features include:


  • Four-wheel suspension: It has four individually adjustable high-end springs, with integrated shock absorbers.
  • Touchscreen technology: It comes with REM400 remote that has an impressive 3.5” colour touchscreen – it requires minimal force to operate.
  • Built-in Bluetooth: With the REM400, users can connect to 3 devices at the same time, and it has mouse mover technology.
  • Maintenance and service: Easy access to all electronics, cabling, and harnesses make servicing quick and trouble-free. Batteries also slide out easily.
  • LiNX Smart Technology: It allows professionals to configure and tailor power chairs quickly and more intuitively.
  • Colour choice: Users can choose their desired colours.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Technical data
Technical data
Seat width

Seat width

380 - 530 mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

400 - 650 mm 3 450 / 480 mm without lifter

Backrest height

Backrest height

480, 540, 560 mm

Armrest height

Armrest height

275 - 340/ 325 - 390 mm 10 245 - 310/ 295 - 360 mm

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0° - 25°

Backrest angle

Backrest angle

90 - 120°

Total height

Total height

1020 - 1190 mm

Total length without footrests

Total length without footrests

910 mm

Driving unit width

Driving unit width

630 mm (wheelbase)

Total length

Total length

1190 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

73.5 Ah

Turning diameter

Turning diameter

1770 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 / 100 mm

Max. safe slope

Max. safe slope

20% (11.3°) 15% (8°) with lifter

Motor capacity

Motor capacity

340 W

Speed

Speed

6 or 10 km/h

Driving range

Driving range

up to 36 km

Total weight

Total weight

174 kg 3

Crash tested

Crash tested

Shroud colour

Shroud colour

Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) - Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Shroud colour

Comment

1. Measured from seat plate 2. Average, varies with configuration 3. Ground to seat plate, w/o seat cushion 4. Measured from foot plate to seat plate 5. + 50 mm armrest adjustment 6. Legrest at largest angle 7. Depending on motor configuration, measurement according to ISO 7176-4 @ 6 km/h 8. Powered; man. settable 0-9° 9. Depending on back support choice 10. With one-piece seat plate 11. With telescopic seat frame 12. Invacare Modulite seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family.
