Invacare Storm 4 Xplore Power Wheelchair

Invacare Storm 4 Xplore Power Wheelchair

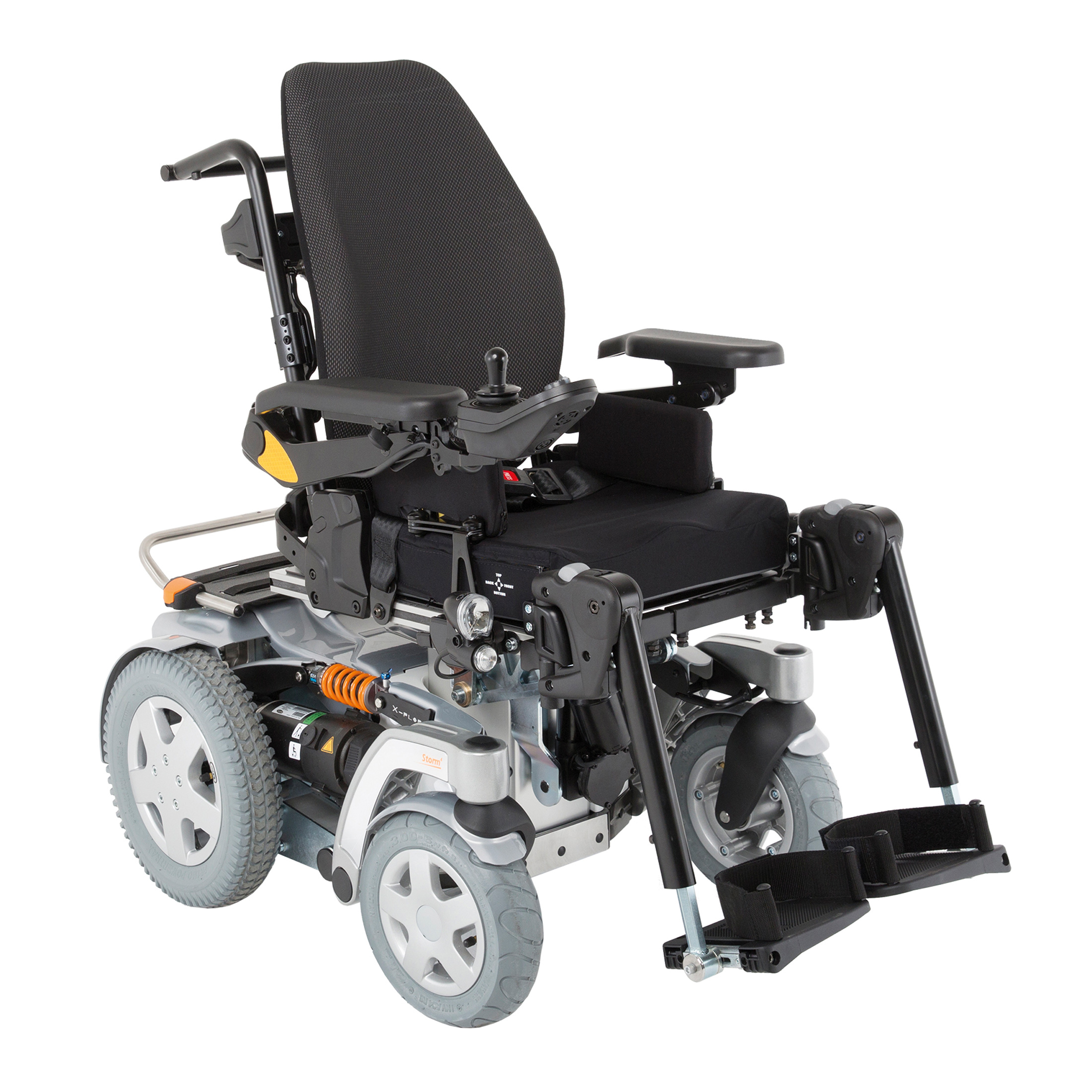

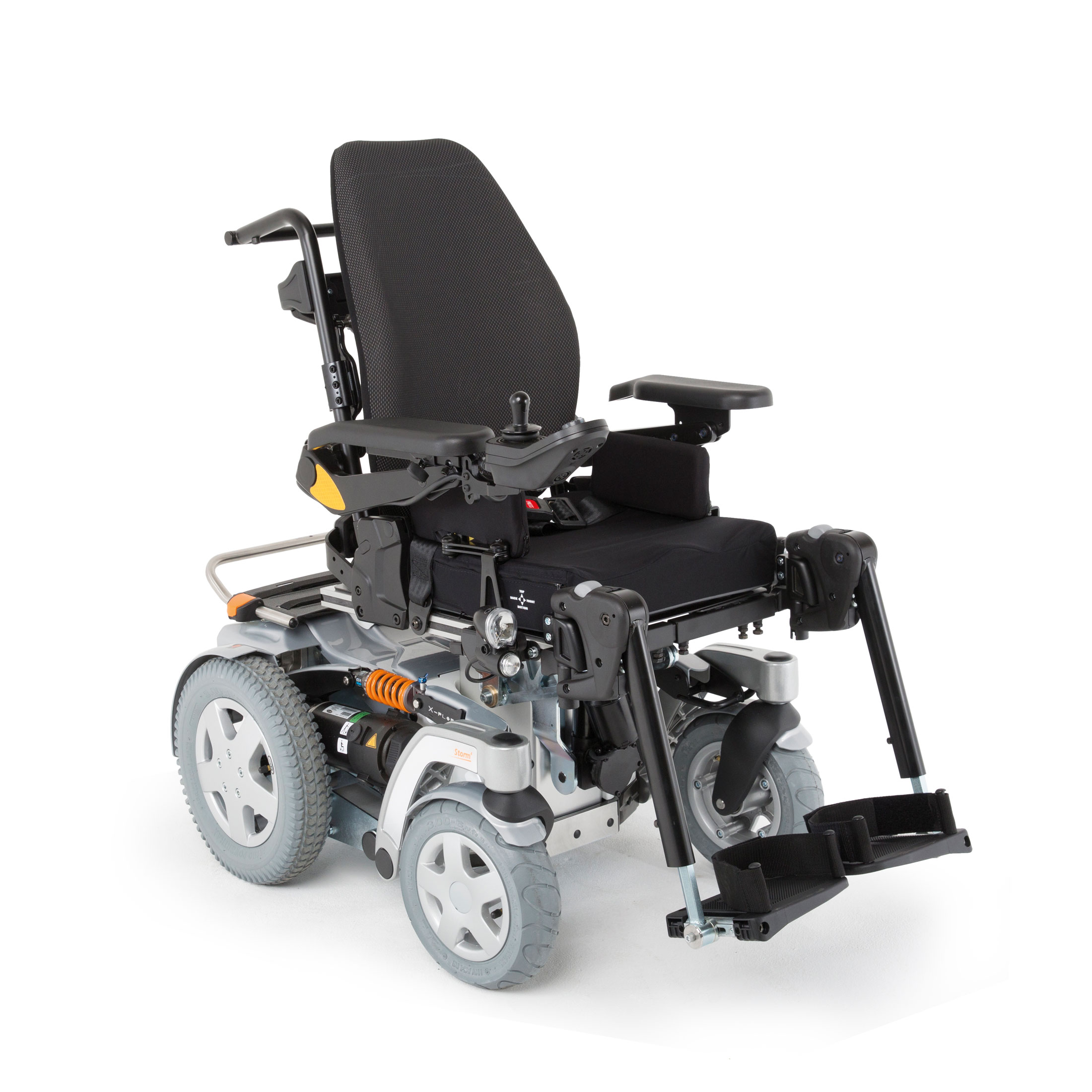

The Invacare Storm 4 Xplore power wheelchair is designed to provide the user with a powerful and fast drive experience.



Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore Power Wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore power wheelchair
Invacare Storm 4 Xplore Power Wheelchair

Key benefits include:

  • Four-wheel drive suspension with stock absorption and improved traction for confident driving outdoors.
  • Equipped with an modulite system, the Storm 4 Xplore is available in a wide range of supportive seating options to help provide the best for the user.
  • Includes adjustable high-end springs, with integrated shock absorbers which allows for outstanding comfort and traction on rough ground.
  • A wide range of features and options available on this power wheelchair.



A perfect power wheelchair for all terrains.

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 530 mm [MO] | 490 - 530 (360) mm [RE]

Seat depth

Seat depth

410 - 510 mm MO | 460 - 510 mm RE

Seat height

Seat height

440 - 690 mm 450 / 480 mm without lifter

Backrest height

Backrest height

480, 540, 560 mm MO | 770 - 830 mm RE

Armrest height

Armrest height

275 - 340/ 325 - 390 mm, 245 - 310/ 295 - 360 mm [MO] | 250- 340 / 290 - 380 mm [RE]

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0° - 25°

Backrest angle

Backrest angle

90 - 120° [MO] | 90 - 135° [RE]

Total height

Total height

1020 - 1190 mm [MO] | 1300 mm [RE]

Total length without footrests

Total length without footrests

910 mm

Driving unit width

Driving unit width

630 mm (wheelbase)

Total length

Total length

1190 mm

Max. User weight

Max. User weight

150 kg

Battery capacity

Battery capacity

73.5 Ah

Turning diameter

Turning diameter

1770 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 / 100 mm

Max. safe slope

Max. safe slope

up to 20% (11.3°)

Motor capacity

Motor capacity

340 W

Speed

Speed

6, 10 or 12 km/h

Driving range

Driving range

up to 37 km

Total weight

Total weight

174 kg

Crash tested

Crash tested

Shroud colour

Shroud colour

Standard colours: Blue (RAL 5026), Black (RAL 9005), Champagne (0314) - Colour Options: Transparent Red (0200), White (RAL 9016), Olive Green (RAL 6003)

Shroud colour

Comment

Please note [MO] refers to Modulite seat and [RE] refers to Recaro seat.

  1. Measured from seat plate
  2. Average, varies with configuration
  3. Ground to seat plate, w/o seat cushion
  4. Measured from foot plate to seat plate
  5. + 50 mm armrest adjustment
  6. Legrest at largest angle
  7. Depending on motor configuration, measurement according to ISO 7176-4 @ 6 km/h
  8. Powered; man. settable 0-9°
  9. Depending on back support choice
  10. With one-piece seat plate
  11. With telescopic seat frame
  12. Invacare Modulite seat components are cross compatible across the Invacare electric wheelchair range and partly with the Invacare Rea manual wheelchair family.
