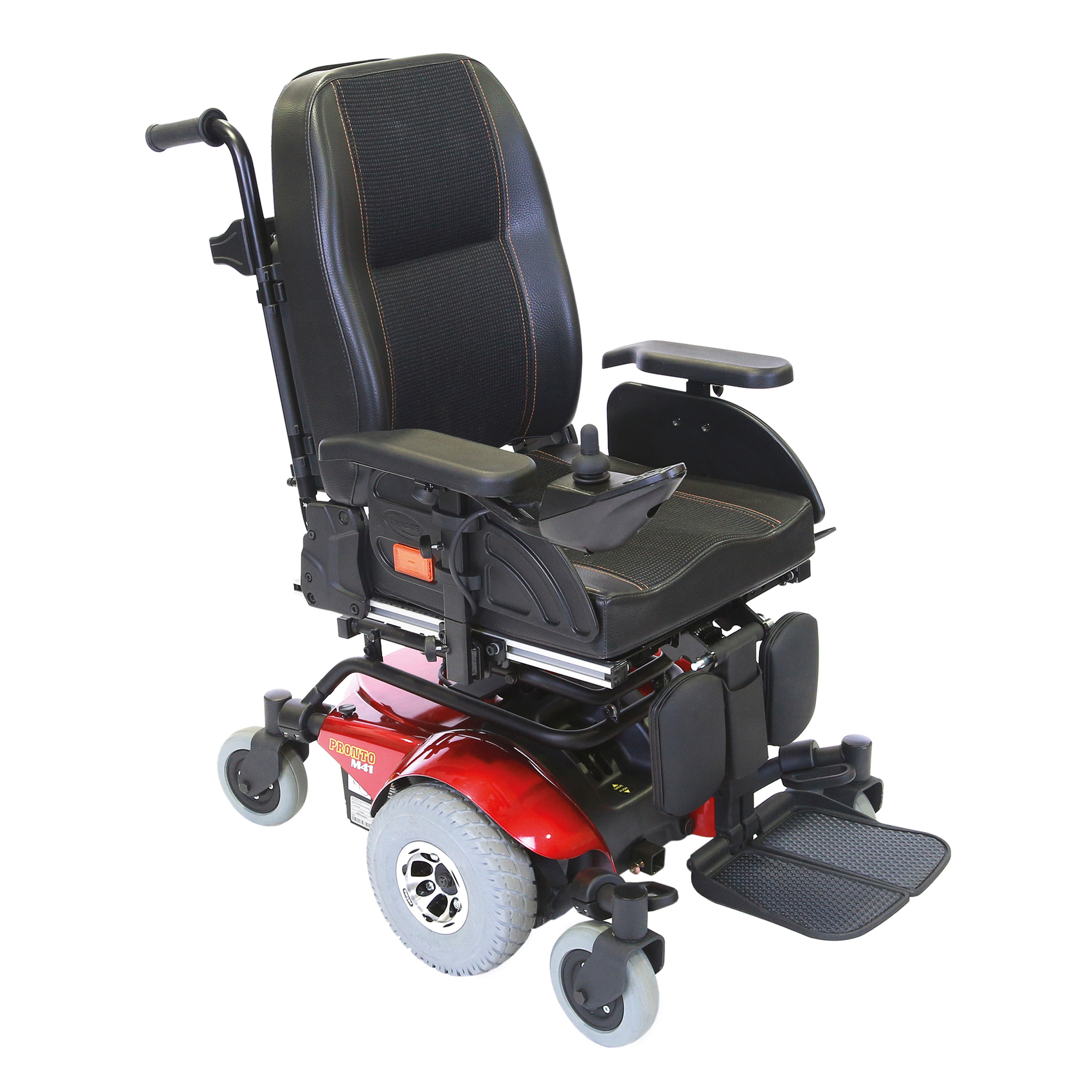

Invacare Pronto M41 Power Wheelchair

Invacare Pronto M41 Power Wheelchair

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Specifications & Downloads
Sales Literature (1)
Sales Literature (1 archive)
Technical data
Technical data
Seat width

Seat width

380 - 530 mm

Seat depth

Seat depth

410 - 510 mm 510 - 560 mm

Seat height

Seat height

420 - 720 mm

Backrest height

Backrest height

480 - 660 mm

Armrest height

Armrest height

245 - 310 mm 230 - 360 mm

Length of footrests

Length of footrests

290 - 460 mm

Seat angle

Seat angle

0 - 30°

Backrest angle

Backrest angle

90 - 120°

Total height

Total height

1030 - 1090 mm

Total length without footrests

Total length without footrests

830 mm

Driving unit width

Driving unit width

610 - 690 mm

Total length

Total length

1030 mm

Max. User weight

Max. User weight

136 kg

Battery capacity

Battery capacity

2 x 12V 32 Ah

Turning diameter

Turning diameter

1075 mm

Max. climbable obstacle height

Max. climbable obstacle height

50 mm

Max. safe slope

Max. safe slope

7° / 12.3%

Motor capacity

Motor capacity

2 x 250 W

Speed

Speed

6 km/h

Driving range

Driving range

up to 21 km

Total weight

Total weight

112 to 128 kg

Crash tested

Crash tested

Frame colour

Frame colour

Electric Red

Frame colour

Comment

1. Settable in 4 steps with additional 50 mm by T-arm adjustment or -50 mm with in-rigged armrests 2. Infinite adjustment 3. With lifter, +30 mm for sling seat option 4. Depending on configuration 5. T-armrest 6. Flip-up or following armrest 7. Wheelbase width 610 mm 8. According to ISO 7176-4:2008 9. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family.

User Manual (1)
User Manual (1 archive)
Service Manual (1)
Service Manual (1 archive)
Test & Certificates (2)
Spare Parts (1)
Spare Parts (1 archive)
