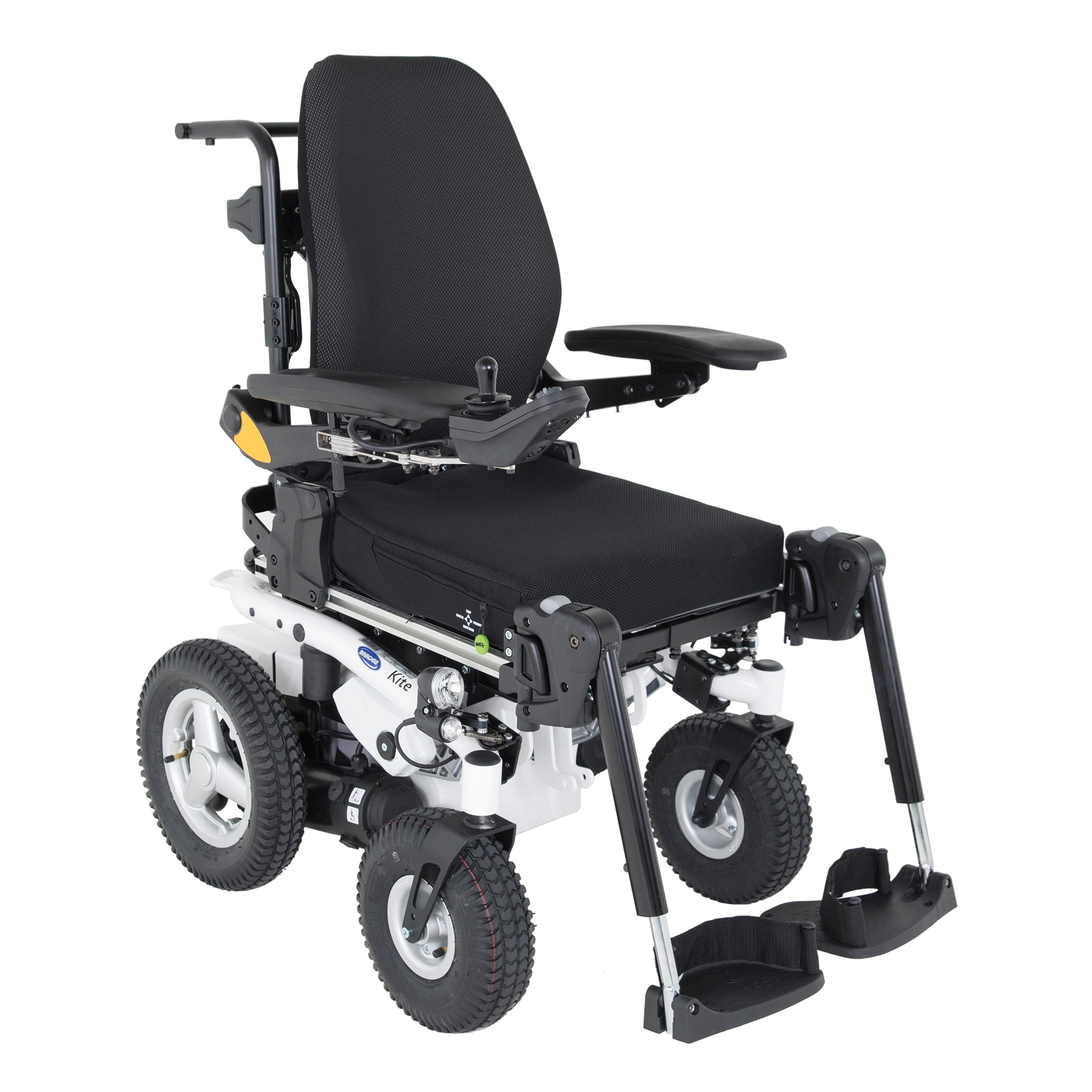

Invacare Kite Power Wheelchair

Visit the microsite
Visit the microsite
Invacare Kite Power Wheelchair
Invacare Kite Power Wheelchair
Discontinued product Discontinued product
Invacare Kite power wheelchair
Invacare Kite power wheelchair
Invacare Kite Power Wheelchair
Invacare Kite Power Wheelchair
Invacare Kite power wheelchair
Invacare Kite power wheelchair
Invacare Kite power wheelchair
Invacare Kite Power Wheelchair
Invacare Kite Power Wheelchair
Invacare Kite power wheelchair
Invacare Kite power wheelchair
Invacare Kite power wheelchair
Invacare Kite Power Wheelchair
Invacare Kite Power Wheelchair
Invacare Kite power wheelchair
Product Comparator
Compare
Cancel Compare
Sales contact Show your sales contact

Request a quote

Please complete the below form to request a quote. Please note, personal data you provide will not be used or stored unless you would like to stay connected. For more information, view our Privacy Policy that can be found at the bottom of this page.

Invacare takes data protection seriously. Please read our privacy policy for information on how we handle your data and what your rights are.
Find your Sales Contact
Specifications & Downloads
Sales Literature (5)
Sales Literature (5 archives)
Modulite Seating System - Sales Brochure (1.18 MB)
IE_2017_LiNX_Sales_Brochure (1.12 MB)
Kite Powerchair Sales Brochure (2.57 MB)
IE_2017_Kite_Consumer_brochure (2.6 MB)
LiNX Brochure (926.54 KB)
Technical data
Technical data
Seat width

Seat width

380 - 530 mm

Seat depth

Seat depth

410 - 510 mm

Seat height

Seat height

460, 480, 500 mm

Backrest height

Backrest height

480, 540 or 560 - 660 mm

Armrest height

Armrest height

245 - 310/ 295 - 360 mm

Length of footrests

Length of footrests

290 - 470 mm

Seat angle

Seat angle

0 -20° / 0 - 30°

Backrest angle

Backrest angle

90° - 120°

Total height

Total height

max. 1170 mm

Total length without footrests

Total length without footrests

max. 870 mm

Driving unit width

Driving unit width

595 mm

Total length

Total length

max. 1140 mm

Max. User weight

Max. User weight

136 / 160 kg

Battery capacity

Battery capacity

60 Ah / 73 Ah

Turning diameter

Turning diameter

ca. 1600 mm

Max. climbable obstacle height

Max. climbable obstacle height

60 mm

Max. safe slope

Max. safe slope

10° / 18%

Motor capacity

Motor capacity

2 x 250 W 2 x 340 W

Speed

Speed

6 / 10 / 12 km/h

Driving range

Driving range

up to 39 km

Total weight

Total weight

126 kg

Crash tested

Crash tested

Frame colour

Frame colour

Black, Arctic White

Rim colour

Rim colour

White, Silver, Black

Shroud colour

Shroud colour

Pearl Night Blue, Metallic Silver, Black, Transparent Cherry Red, Arctic White, Grasshopper Green, Sunshine Yellow

Shroud colour

Comment

1. Measured without seat cushion 2. Certain legrest lengths are restricted to a special legrest type 3. With COG tilt or combined lifter and tilt modle 4. Depending on back support choice 5. With the option of single arm fork 6. Depending on seat position 7. Total weight is depending on configuration 8. HD performance package; 4-pole motors and 120A power module 9. 100 mm with kerb climber For more comprehensive pre-sales information about this product, including the product’s user manual, please see your local Invacare website. One piece seat plate Modulite™ telescopic seat 440 - 480 mm 380 - 530 mm 410 - 510 mm 410 - 510 mm 0 - 20° 0 -20° / 0 - 30° 3 440, 460, 480, 500 mm 1 460, 480, 500 mm 1 90° - 120° 480 mm 1 480, 540 or 560 - 660 mm 1, 4 290 - 470 mm 1, 2 275 - 340/ 325 - 390 mm 245 - 310/ 295 - 360 mm 595 mm 5 max. 1170 mm 6 max. 1140 mm 6 max. 870 mm 6 136 / 160 kg 8 125 kg 7 126 kg 7 Seat width Seat depth Seat height Seat angle Backrest angle Backrest height Length of footrests Total height Driving unit width Total length inc. footrests Total length without footrests Armrest height Max. user weight Total weight Battery capacity 60 Ah / 73 Ah Max. climbable Turning diameter obstacle height Max. safe slope Driving range ca. 1600 mm 2 x 250 W 2 x 340 W 8, 14 60 mm 9 10° / 18% 10 up to 39 km 11 6 / 10 / 12 km/h Motor capacity Speed Invacare Kite Shroud colours Rim colours Invacare Kite 10. The max. safe slope depends on the powerchair configuration. For further details please see the user manual 11. 60 Ah batteries 25 to 34 km 73 Ah batteries 31 to 39 km Driving range will vary by configuration (battery size, speed) 12. Additional 100 mm of height adjustment 13. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family. 14. 12 km/h DuraWatt motors

Pricelist (1)
Pricelist (1 archive)
Kite Modulite Price Form (1007.2 KB)
User Manual (1)
User Manual (1 archive)
Invacare Kite user manual en (7.86 MB)
Service Manual (1)
Service Manual (1 archive)
Kite Manual (10.6 MB)
Test & Certificates (4)
Test & Certificates (4 archives)
Declaration of Conformity (178.31 KB)
TUV Report (571.84 KB)
TUV Full Report (7.18 MB)
Kite Crash Test (766.08 KB)
Spare Parts (1)
Spare Parts (1 archive)
Invacare Kite Spare Parts (7.18 MB)
Miscellaneous (2)
Miscellaneous (2 archives)
Invacare Alber twion M24 Vliegcertificaat 2020 (73.65 KB)
Battery Charging ‐ Consumer guide to best practise (209.78 KB)
